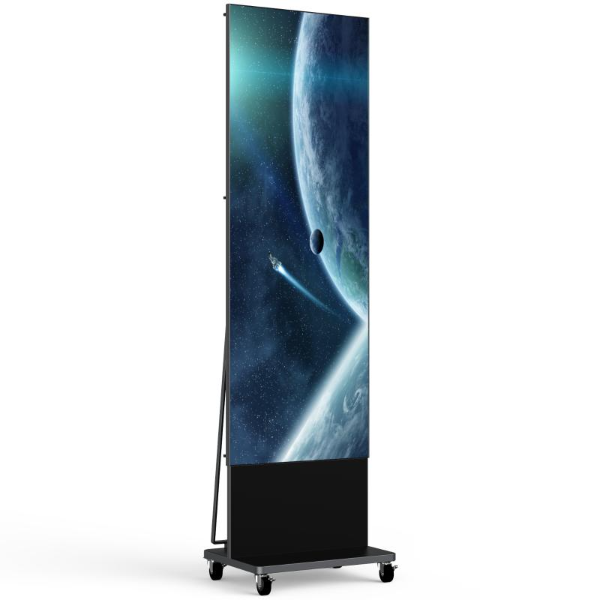

Hikvision P1.2 Poster LED Display

Even the thickest part of this thin display is only 28.1 mm or so. With two-color alloy splicing design and magnetic butterfly bezel design, it supports seamless splicing of multiple screens.
Empowered by self-developed lossless image processing technology and ultra-low gray scale image control technology, it presents dynamic colors and delicate images with soft color.
You can control and manage your content remotely via local storage, USB flash drive, mobile client, PC client, Hik-cloud, etc.
Its modular system box supports quick maintenance or replacement of product system modules.
When used in a single unit, it supports dynamic guidance and mobile phone mirroring. When spliced with two units, it can be used to display character ads. When spliced as a 2K splicing display, it can be directly connected to display a computer screen.
It supports tilt bracket mounting, mobile two-color alloy base mounting, wall mounting, pendant mounting, and creative bracket mounting.
HOB light board protection functions make it moisture-proof in humid regions and prevent it from falling over in crowded places.

Description

Category	Item	Specification
Product Model	Model	DS-D4212MI-070H(B)
	Product Model	DS-D4212MI-070(B)
Cabinet	Pixel Configuration	SMD Triad LED
	Pixel Pitch Category	P1.2
	Pixel Pitch	1.25 mm
	Modules Component	Cabinet × 5, single cabinet (2 × 4)
	Dimensions (W × H × D)	613 × 1695.5 × 68.1 mm
	Resolution	480 × 1350
	Area	1.0125 m²
	Weight	32.5 kg
	Pixel Density	640,000 dots/m²
	Lamp Board Housing	Without housing, glue potting
	Cabinet Material	Aluminum alloy
	Maintenance Method	Front maintenance for cabinet, rear maintenance for system backpack
Display	White Balance Brightness	600 cd/m²
	Color Temperature	3000 to 10000 K adjustable
	Viewing Angle	160° (H) / 160° (V)
	Contrast Ratio	≥ 3000:1
	Color Uniformity	± 0.003 Cx, Cy
	Brightness Uniformity	≥ 97%
Processing Performance	Driving Method	Constant current driving
	Frame Frequency	60 Hz
	Refresh Rate	Up to 3840 Hz
	Grey Level	Up to 16 bit
Power	Power Supply	110 to 220 VAC ±15%
	Max. Consumption	≤ 600 W/m²
	Average Consumption	< 200 W/m²
Working Environment	Working Temperature	-10 °C to 40 °C
	Working Humidity	10% to 60% RH (non-condensing)
	Storage Temperature	-20 °C to 60 °C
	Storage Humidity	10% to 85% RH (non-condensing)
General	Package Dimension (W × H × D)	1831 × 1082 × 246 mm
	Gross Weight	69 kg
Packing List	Accessories	Power cord × 1
		HDMI cable × 1
		Wi-Fi antenna × 2
